41 the vector diagram below represents the velocity

~ The diagram below shows a child pulling a SO.-kilogram friend on a sled by applying a 300.-newton force on the sled rope at an angle of. 40.0 with the horizontal 50. kg The vertical component of the 300.-newton force is approximately (1) 510 N (2) 230 N (3) 190 N (4) 32 N ~ The vector diagram below represents the Jun 15, 2017 — 9 The diagram below shows a light ray striking a. (2) 3.6 km. (47.0 km plane mirror. ... 4 A car with an initial velocity of 16.0 meters'per.10 pages

diagram below represents these vector quantities. 66 Using a ruler, determine the scale used in the vector diagram. [1] 67 On the diagram above, use a protractor and a ruler to construct a vector to represent the resultant velocity of the airplane. Label the vector R. [1] 68 Determine the magnitude of the resultant velocity. [1]

The vector diagram below represents the velocity

The vector diagram below represents the velocity of a car traveling 24 meters per second east of north. What is the magnitude of the component of the car's.12 pages 37 The vector diagram below represents the velocity of a car traveling 24 meters per second 35° east of north. What is the magnitude of the component of the ... The vector diagram below represents the girl's first two displacements in sequence from point P. The scale used in the diagram is. 1.0 centimeter = 0.20 ...4 pages

The vector diagram below represents the velocity. Show Answer. The direction of the vector is 47° North of West, and the vector's magnitude is 2. Problem 4. Find the magnitude and direction of vector in the diagram below. Show Answer. The direction of the vector is 43° East of South, and the vector's magnitude is 3. It is also possible to describe this vector's direction as 47. Base your answers to questions 2 through 4 on the information below. A projectile is fired from the ground with an initial velocity of 250 meters per second at an angle of 60" above the horizontal. 2. On the diagram at right, use a protractor and ruler to draw a vector to represent the initial velocity of the projectile. 1. acceleration and velocity 2. weight and force 3. speed and time 4. displacement and distance 3) Which vector below represents the resultant of the concurrent vectors A and B in the diagram? 4) A student walks 1.0 kilometer due east and 1.0 kilometer due south. Then she runs 2.0 kilometers due west. The magnitude of the student's resultant 35.On the diagram above, use a ruler to construct the vector representing the hiker's resultant displacement. 36.Using a metric ruler, determine the scale used in the vector diagram. 37.The graph below represents the relationship between weight and mass for objects on the surface of planet X.

launched with a velocity of 2.0 meters per second eastward from the west bank of the stream. A) 8.6 s B) 12 s C) 15 s D) 60. s ... 24.The vector diagram below represents the horizontal component, FH, and the vertical component, FV, of a 24-newton force acting at 35° above the horizontal. On the diagram below, construct a vector to represent the weight of the box. Use a metric ruler and a scale of 1.0 centimeter = 40. newtons. Begin the vector at point B and label its magnitude in newtons. 35. In the accompanying diagram, a box is at rest on an inclined plane. Which vector best represents the direction of the normal force acting ... 13. Which two terms represent a vector quantity and the scalar quantity of the vector's magnitude, respectively? A. acceleration and velocity B. weight and force C. speed and time D. displacement and distance 14. The diagram below represents a force vector, A, and a resultant vector, R. Which force vector B below could be added to In the diagram shown, surface A of the wooden block has twice the area of ... Which vector best represents the resultant velocity of the ball when fired?8 pages

(An acceleration diagram is similar to a velocity diagram; however the vectors on the acceleration diagram represent the acceleration rather than the velocity of the an object.) Sketch x vs. t, v vs. t, and a vs. t graphs for the entire motion of a ball rolling up and then down the incline. 52. Consider the trajectory diagram shown below for a non-horizontally launched projectile. On the diagram, draw vector arrows representing the v x and v y velocity components during the course of the motion. The length of the arrows should represent the magnitude of the velocity components. Label each component. south at 2.0 meters per second, as shown in the diagram below. Which vector best represents the resultant velocity of the boat relative to the riverbank? (1) (3) (2) (4) 15. As shown in the diagram below, a painter climbs 7.3 meters up a vertical scaffold A to B and then walks 11.0 meters from B to C along a level platform diagram below which represents a ball being kicked by a foot and rising at an angle of 30.º from the horizontal. The ball has an initial velocity of 5.0 meters per second. [Neglect friction.] 34. What is the magnitude of the horizontal component of the ball's initial velocity? (A) 2.5 m/s (C) 4.3 m/s (B) 5.0 m/s (D) 8.7 m/s 35.

Solved Question 1 7 The Diagram Below Shows The Positions Chegg Com

To find 2 times a vector, you can multiply each component by a scalar factor of 2. To find the sum of two vectors, \RXFDQDGGWKHFRPSRQHQWV $16:(5 HIKING Amy hiked due east for 2 miles and then hiked due south for 3 miles. a. Draw a diagram to represent the situation, where is the resultant vector. b.

Acceleration Formula

Vector diagrams can be used to describe the velocity of a moving object during its motion. For example, a vector diagram could be used to represent the motion of a car moving down the road. In a vector diagram, the magnitude of a vector quantity is represented by the size of the vector arrow. If the size of the arrow in each consecutive frame ...

Physics Reference The Speed Of An Aircraft In Still Air Is 200 Km H 1 The Wind Blows From The West At A Speed Of 85 0 Km H 1

Base your answers to questions 2 through 4 on the information below. A projectile is fired from the ground with an initial velocity of 250 meters per second at an angle of 60° above the horizontal. 2. On the diagram at right, use a protractor and ruler to draw a vector to represent the initial velocity of the projectile.

A river flows due east at 1.5 meters per second. A ship leaves the north shore of the river and heads due south at 2.0 meters per second, as shown in the diagram below. Which vector best represents the resultant velocity of the ship relative to the riverbank? a) Downwards vertical, 2.0 m/s b) Diagonal bottom right, 2.0 m/s c) Downwards vertical ...

Physics For The Ib Diploma Sixth Edition Tsokos Cambridge University Press By Cambridge University Press Education Issuu

a.) On the diagram below, draw a vector to represent each of the three forces acting on the block. Use a ruler and a scale of 1.0 centimeter = 10. newtons. Begin each vector at point C and label its magnitude in newtons. Frictionless surface b.) As the block slides Onto another unknown surface its acceleration decreases to 2.0 meters per second ...

(a) Draw a vector diagram following the directions below. (1) Using a ruler and protractor and starting at point P, construct the sequence of two displacement vectors for the newspaper carrier's route.

11 18 Do Now On A New Sheet Consider The Position Time Plots Below Sketch The Shape Of The Corresponding Velocity Time Graphs Hint 1 Slope In P T Ppt Download

18.On the diagram above, construct the resultant vector that represents the dog's total displacement. 19.Using a metric ruler and the vector diagram, determine the scale used in the diagram. 20.The graph below represents the velocity of an object traveling in a straight line as a function of time. Determine the magnitude of the total displacement

Physics Reference Physics 9702 Doubts Help Page 150

The diagram below represents a force vector, A, and a resultant vector, R. Wthich force vector B below could be added to force vector to produce resultant vector R? Which terms both represent scalar quantities? A) displacement and speed B) distance and velocity C) distance and speed D) disp lacement and velocity Which term a scalar quantity?

Ap Physics 1 Chapter 3 Flashcards Quizlet

The horizontal and vertical velocity vectors are shown for position X. Which diagram below accurately represents the magnitude and direction of these velocity vectors for position Y? Y А B C a ООО 0 0 b Question 3 (5 points) A ball rolls off the table and free falls to the ground.

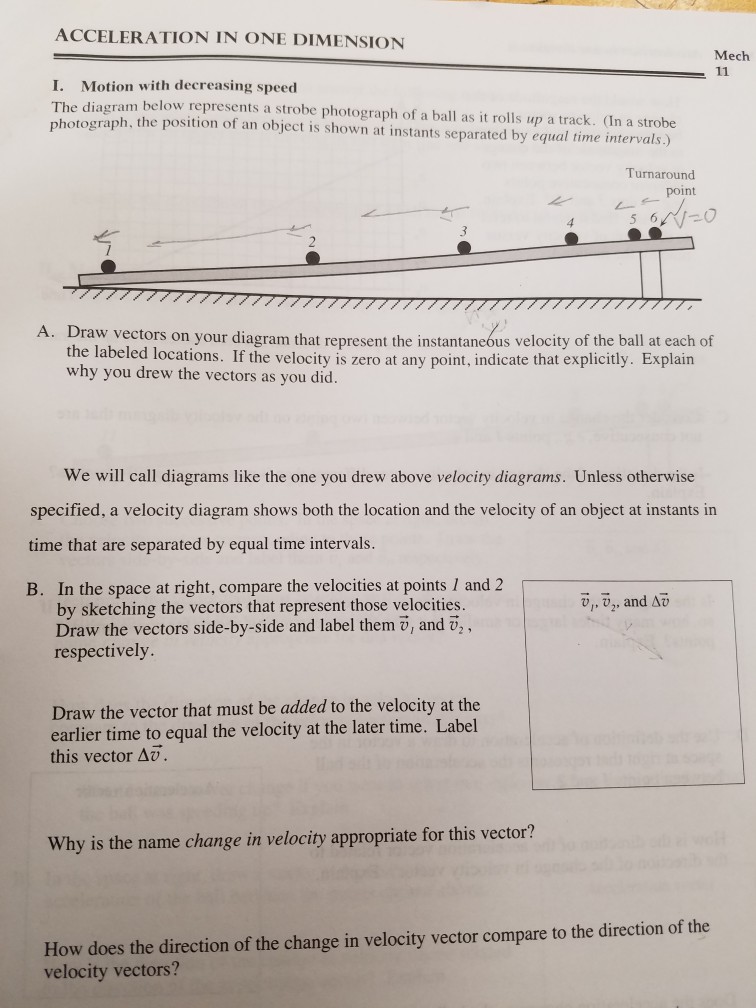

Solved The Diagram Below Shows The Positions Of An Iolab At Equal Time Intervals As It Speeds Up Assume That The Iolab Is Already Moving Att Pos 0 Dirocton Question 1 12 Use The

86. The vector diagram below represents the velocity of a car traveling 24 meters per second 350 east of north. .14 pages

Kinematics University Physics

horizontally with an initial velocity of 20. meters ... The vector diagram below represents the girl's fist two displacements.8 pages

Describing Motion With Vector Diagrams

13. Which vector best represents the resultant of forces F1 and F2 acting concurrently on point P as shown in the diagram to the right? (1) (3) (2) (4) 14. A river flows due east at 1.5 meters per second. A motorboat leaves the north shore of the river and heads due south at 2.0 meters per second, as shown in the diagram below.

Solved I M Not Sure How You Would Find The Vector Chegg Com

Answer (1 of 4): V_i = initial velocity V_f = final velocity Remember that velocities V_f and V_i are vectors, so direction is important. the change in velocity = \Delta V=\Delta \bar{V}= \bar{V_f} - \bar{V_i} An easy way to subtract a vector is to add the negative vector where the negative v...

Regents Physics Review 1 Vectors Scalar Magnitudesize Only

The diagram below represents a 5-newton force and a 12-newton force acting on point P. The resultant of the two forces has a magnitude of. 13 N NE. 16.

35.On the diagram above, use a ruler to construct the vector representing the hiker's resultant displacement. 36.Using a metric ruler, determine the scale used in the vector diagram. 37.The graph below represents the relationship between weight and mass for objects on the surface of planet X.

Displacement & Velocity Quiz Base your answers to questions 1 through 4 on the information below. A girl rides her bicycle 1.40 kilometers west, 0.70 kilometer south, and 0.30 kilometer east in 12 minutes. The vector diagram below represents the girl's fist two displacements in sequence from point P.

Solved Acceleration In One Dimension Mech Motion With Chegg Com

The vector diagram below represents the velocity of a car traveling 24 meters per second 35 degrees of north What is the magnitude of the components of the car's velocity this is directed eastward? 14 m/s. A ball is thrown straight up with a speed of 12 meters per second near the surface of earth. What is the maximum height reached by the ball?

Pythagorean Theorem Archives Regents Physics

Transcribed image text: Draw a motion diagram with velocity vectors and an indication of the acceleration vector for the following. (x is for horizontal position/motion, y is for vertical position/motion) Label the origin on the coordinate line. In each case, is the speed increasing, decreasing, or constant?

Mechanics Map Vectors

The scaled diagram below represents these vector quantities. 1.50 7.7 9. Using a ruler, determine the scale used in the vector diagram. lcm = 10. On the diagram above, use a protractor and a ruler to construct a vector to represent the resultant velocity of the airplane. Label the vector R. 11. Determine the magnitude of the resultant velocity. 12.

Motion Tutorial

The vector diagram below represents the girl's first two displacements in sequence from point P. The scale used in the diagram is. 1.0 centimeter = 0.20 ...4 pages

37 The vector diagram below represents the velocity of a car traveling 24 meters per second 35° east of north. What is the magnitude of the component of the ...

Resultant Velocity An Overview Sciencedirect Topics

The vector diagram below represents the velocity of a car traveling 24 meters per second east of north. What is the magnitude of the component of the car's.12 pages

Practice Vector Test

Read Online Two Dimensional Motion And Vectors Worksheet Answers Epub Archive Online

Energies Free Full Text Recent Approaches Of Forecasting And Optimal Economic Dispatch To Overcome Intermittency Of Wind And Photovoltaic Pv Systems A Review Html
