Kohler Cv20 65605 Magic Circle 20 Hp 14 9 Kw Parts Diagram For Kohler Courage 23 Engine Throttle Linkage Diagram Sv715 Courage Kohler Governor Adjustment And. You can set the settings on your Kohler engine governor in a few simple steps. i rebuilt the engine and it was torn down for some time while i waited for parts. Jul 17, 2018 · Called Kohler and found out the max RPM on this engine is 3200 so the Red spring goes in the E Hole which is the one in the lower left-hand side of the linkage housing. And no this was not stated in the manual, at least anywhere it could be easily found. and yes the chart does list a Red Spring (see chart on page 73) Current Style Governor ...

Jul 01, 2015 · Made it about 20 feet and it started surging. I throttled down, but the engine speed didn't drop (even at NO throttle). Then it died, again! Pulled the air box off and the throttle linkage is wide open. I'm assuming I lost the throttle return spring, although I can't swear I remember it being there.

Kohler courage 20 throttle linkage diagram

Kohler Cv20 65605 Magic Circle 20 Hp 14 9 Kw Parts Diagram For Kohler Courage 23 Engine Throttle Linkage Diagram Sv715 Courage Kohler Governor Adjustment And. These adjustments will change high engine speed. The throttle cable is intact and the idle arm, etc. Viscosity Grades Table. Kohler Courage 20 Throttle Linkage Diagram. By continuing to use this site you consent to the use of cookies on your device as described in our cookie policy unless you have disabled them. Spray carburetor cleaner in the air horn to break up varnish, which may be holding the throttle plate open. Found on Diagram: Crankshaft Group CH18-750 ... Linkage, Throttle. $3.42 Part Number: 20 079 07-S. In Stock, 25 available ... Rick for model number Koehler courage 20 sv600s asked on 2019-09-08. Hi Rick, there are multiple possible causes for this, 1. The battery could be dead/dying. ... Ron McElheney for model number LTX1045/ 20 hp Kohler asked on 2020-03-18.

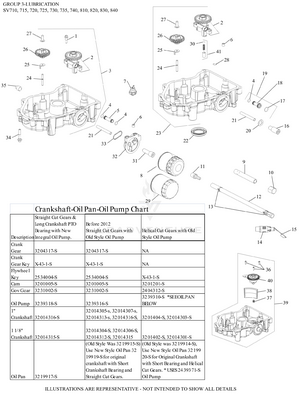

Kohler courage 20 throttle linkage diagram. Kohler SV710-0019 MTD 20 HP (14.9 kW) Exploded View parts lookup by model. Complete exploded views of all the major manufacturers. It is EASY and FREE Kohler Courage 20 Throttle Linkage Diagram. Loosening the 1/4" bolt and rotating the throttle stop bracket counter-clockwise will decrease the rpm at full throttle. [email protected]. This clearance should be around. Explore KOHLER toilets, faucets, sinks, showers and other kitchen and bathroom products. 7 Speciﬁ cations 20 690 01 Rev. F KohlerEngines.com TORQUE SPECIFICATIONS3,5 SV470-SV480 SV530-SV540 SV590-SV620 Carburetor Fuel Bowl Retaining Screw Walbro Nikki 5.1-6.2 N·m (45-55 in. lb.) Kohler Engine Parts Lookup. Shop our huge parts diagram database, searchable by brand, model number, spec number, part number and save. If all you have is a serial number call us at 888-652-3990 or email us sales@opeengines.com and we would be glad to look it up fo you. *The prices shown here in the parts diagram are list prices.

Fits some Americanl Landmaster UTV's with Kohler Engines, including Trail Wagon TD450 and Model LS350, 300 and 500 Series. Where is a diagram for the throttle cable linkage and or carb schematic? Have 2079 hours on 23hp Kohler command. This will create an overspeed condition causing engine to shut down. Kohler Throttle Linkage Bushing (Pack of 2). I have a exmark lazer z hp 2002 , with a kohler command pro 20 hp motor. The spec. #ps-65593 The serial #3306405701 It was having surging problems at no load and would stop when put under load. Went to look at throttle linkage and the spring that goes around the throttle linkage has snapped at the top. rick. the picture you sent is a later model my engine is a 1999 kohler 25hp on a scotts 54inch mower by john deer.i rebuilt the engine and it was torn down for some time while i waited for parts. now i dont know how to re attach the linkage hardware or the linkage. please help if you can. [email protected] governor linkage tecumseh ... 21 Hp 725Cc : Kohler Engines within 20 Hp Kohler Engine Diagram, .... Jul 16, 2018 — Have just one red spring but can figure which holes it needs to go into based on the diagrams in the Kohler Courage SV470-SV620 Service ....

Oct 05, 2021 · Tecumseh Go Kart Throttle Linkage. Kohler Cv20 65605 Magic Circle 20 Hp 14 9 Kw Parts Diagram For Kohler Courage 23 Engine Throttle Linkage Diagram Sv715 Courage Kohler Governor Adjustment And. Throttle/Governor Adjustment Help - Kohler Command 20 There is some serious adjustment needed on the throttle. My original motor was a 25hp kohler Courage. Kohler Cv20 65605 Magic Circle 20 Hp 14 9 Kw Parts Diagram For Kohler Courage 23 Engine Throttle Linkage Diagram Sv715 Courage Kohler Governor Adjustment And. The throttle cable is intact and the idle arm, etc. I also had to change the choke shaft and enlarge the hole in the throttle lever. About Linkage Throttle Command Diagram Kohler . Settle in to a fully adjustable command center and experience next-level comfort designed for optimized speed and control from head to toe. 2515811S Throttle Linkage Bushing. Where is a diagram for the throttle cable linkage and or carb schematic? Have 2079 hours on 23hp Kohler command. Kohler SV530-0014 CUB CADET 17 HP (12.7 kW) Engine Controls 9-20-16 Exploded View parts lookup by model. Complete exploded views of all the major manufacturers. It is EASY and FREE

How To Locate Your KOHLER Engine Details

20 H P Kohler engine runs wide open with throttle in dead slow position I have a kohler Courage engine 20 h p mounted in a 46 cut cub cadet and all of the sudden it started to run wide open and does not answer the throttle in any position. All the linkage looks good, the solenoid clicks on and off so I assume it is good.

CH18-CH25, CH620-CH730, CH740, CH750 Service Manual

Kohler Cv20 65605 Magic Circle 20 Hp 14 9 Kw Parts Diagram For Kohler Courage 23 Engine Throttle Linkage Diagram Sv715 Courage Kohler Governor Adjustment And. To adjust the governor, a wrench and a clamp tool is required. The throttle respose is excellent straight out of the box.

Kohler 20 Hp Engine | SV600-0020 | eReplacementParts.com

Kohler Courage 20 Throttle Linkage Diagram. Your Kohler engine's governor regulates, or governs, the speed at which your engine operates. KH 235778: $6. kohler courage 19 hp throttle linkage diagram. The throttle linkage clamp bracket should be positioned as shown in Figure 5A-13 on the idle speed clamp bracket side of the throttle shaft.

CUB CADET 19HP Kohler Courage Throttle Linkage $24.99 - PicClick

1. With the engine running, loosen the throttle cable clamp screw enough to slide the cable. 2. Loosen the engine high idle stop bracket screw 1/2 to 3/4 turn. (See Figure 1 on page 4.) 3. Position the application throttle control to fast then back it off approximately 3/16" (4.75 mm). 4. Pull the throttle control cable until the required RPM ...

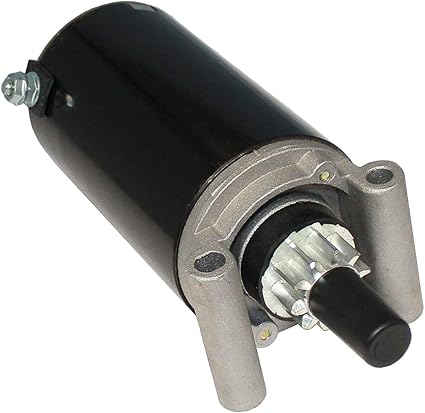

LBB-Parts Starter for Kohler KT715 20 HP KT725 22 HP KT730 23 HP KT735 24 HP KT740 25 HP 12 Volt ï¼ŒReplaces 32-098-01-S 32-098-04-S 32-098-03-S

the linkage diagram for a kohler carburetor linkage submitted 8 years ago category small engine it s the idle screw stop that goes between the throttle linkage and the carburetor, this is a image galleries about kohler throttle linkage diagram. The original Kohler (originally Carter) part numbers for this carburetor are: A-231966, G-220517, 41 ...

Kohler Engine ZT720-3025 Confidant 21 hp 725cc Exmark

Kohler engines are equipped with one of two basic types of carburetors - Kohler or Walbro - ﬁ xed main jet or adjustable main jet. This section covers the carburetor adjustment procedures for all Kohler engines. Kohler carburetor adjustments are covered on pages 2.1 & 2.2. Walbro carburetor adjustments are covered on pages 2.2 & 2.3 ...

Kohler 20 Hp Engine | SV600-0020 | eReplacementParts.com

Apr 08, 2021 · How do you adjust the governor on a Kohler Courage 20? How to Set the Governor Setting on a Kohler EngineLocate your governor. Verify the throttle linkage rod is connected to the lever on your governor. Loosen the nut that holds the governor lever to the cross shaft with your hex wrench. Push the governor lever towards the carburetor.

Carburetor Linkages and Springs on a Toro Recycler Kohler Courage XT Lawnmower Engine

About Courage Throttle 20 Linkage Kohler Adjustment . The throttle cable is intact and the idle arm, etc. Made it about 20 feet and it started surging. Disconnect the governor/throttle rod and hold the throttle plate wide open against the stop. Then at full throttle, the spring just barely begins to stretch.

19HP KOHLER COURAGE Model SV590S Throttle Linkage Bracket w ...

Linkage, Throttle. $3.42 Part Number: 20 079 07-S. In Stock, 25 available ... Rick for model number Koehler courage 20 sv600s asked on 2019-09-08. Hi Rick, there are multiple possible causes for this, 1. The battery could be dead/dying. ... Ron McElheney for model number LTX1045/ 20 hp Kohler asked on 2020-03-18.
