Jin you e70469 ceiling fan switch - Fixya Jin you e70469 ceiling fan switch. ... It is probably in the switch wiring. the switch is probably the issue as it is probably 3 way. ... wiring diagram for transfer case on 011 canyon 4x4 2.9 standard. Read full answer. Be the first to answer Feb 24, 2022 • Cars & Trucks. 0 answers. location of back up lite switch on 011 canyon 4x4 2.9 stanard. Ceiling Fan Pull Chain Switch ( 5 to 8 Wire ... I've spent over 20 hours in the past 3 days working on this fan switch. I have a Jin You e70469 switch and the plastic neck of the switch that comes out for the chain was broken. 1. Jin You is no more; 2. Zing Ear make the same model: ZE-208DA (but not available anywhere). ZE-208D will NOT work; 3. I'm sure there's a way to use the 208D and ...

I have a jinyou E70469 3 way fan switch and lost the wire 7 Nov 2016 — I have a jinyou E70469 3 way fan switch and lost the wire diagram on how the 5 ... SOURCE: Wiring the replacement 3 speed switch (fan motor).

Jin you e70469 wiring diagram

Wiring Diagrams Jin you e70469 wiring diagram. Peavey bass wiring diagram. Pmdx-126 wiring diagram. Wiring diagram cub cadet lt 1550 2006. Hella hid ballast light wiring diagram. 4 pin unbranded fog light switch wiring diagram. Beverage air mt27 wiring diagram. Apm 2.6 wiring. E70469 Fan Switch Wire Ceiling With Remote : Festivalsalsacali Hunter Jin You E70469 Diagram 2001 Chevy Silverado Window Wiring Schematic Begeboy Source What Way Should The Ceiling Fan Turn In Winter. Ceiling Fan Speed Switch Repair Not For Those With Unknown Wiring Youtube 300032snb. Most followers include a ceiling fan course of ahead and reverse. When the ceiling fan course is on ahead, it would blow ... SOLVED: Where can I find a Jin You ceiling fan switch - Fixya 17 Sept 2017 — Where can I find a Jin You ceiling fan switch #E70469 Switch broke ... ps I checked on the Internet of a wiring diagram and I bet you did ...

Jin you e70469 wiring diagram. Lane Recliner Repair Diagram - Wiring Diagram Pictures Jin You E70469 Wiring Diagram; Pac C2r Chy4 Wiring Diagram; 1974 Chrysler 75hp Outboard Wiring Diagram; Mcdermott Tbd Flood-50w-led-120 Vac Wiring Diagram; Icn-2p60-n Wiring Diagram; Belkin Tunecast Auto Wiring Diagram; Fass Pump Wiring Diagram For 2001 Dodge Cummins; Aiphone Lef 3l Wiring Diagram; Datsun 510 Wiring Diagram; 1979 Mazda B2000 ... How can I fix my mistake with the ... - DoItYourself.com I followed the wiring diagram you gave me and now, I have only 1 speed After I do the fan, I need to pull the chain 3 times to make it it run. The Santa e70469 switch has 8 holes instead of 4, I don't know why. Ceiling Fan Pull Switch Wiring Diagram - Wiring Sample Variety of hunter ceiling fan pull switch wiring diagram. The red color on fans is for powering the lights. One of these wires is connected to terminal 1 on the switch. I have a 3 speed ceiling fan with a jin you e pull chain 4 wire switch wire colors black grey purple brown Starting at the pull chain. Jin You E70469 Wiring Diagram. I have a 3 speed ceiling fan with a jin you e70469 pull ... I have a 3 speed ceiling fan with a jin you e70469 pull chain 4 wire switch (wire colors black, grey, purple, brown) Starting at the pull chain going counter clockwise it is numbered 1, 2, 3/strip, L. I need a replacement part. The fan was installed by us be we don't remember what brand and it is unmarked.

Chain on a JInyou E70469 3 speed fan switch broke. - Fixya 1) Diagram the wiring configuration of the switch noting where things go---take pictures. 2) Take out the wires that connect to it. Use a paper clip to spread ... Jin You E70469 Wiring Diagram - Free Wiring Diagram Mar 07, 2019 · Variety of jin you e70469 wiring diagram. A wiring diagram is a streamlined traditional pictorial representation of an electric circuit. It shows the elements of the circuit as streamlined forms, as well as the power as well as signal connections between the devices. Jin You E70469 Wiring Diagram - schematron.org Jin You E70469 Wiring Diagram. 02.10.2018 02.10.2018 3 Comments on Jin You E70469 Wiring Diagram. I need a Jin You E 4 wire 3-speed ceiling fan switch with two black wires, That sounds like it should work for you. That is the same layout on the switch. Amazon.com: e70469 fan switch 1-48 of 139 results for "e70469 fan switch" Westinghouse Lighting #77075 3 Speed Fan Switch. 4.0 out of 5 stars 217. $9.24 $ 9. 24. Get it as soon as Tomorrow, Feb 18. FREE Shipping on orders over $25 shipped by Amazon. More Buying Choices $6.49 (12 new offers) Westinghouse 7707500 Switch 3Spd Fan.

Jin You E70469 Wiring Diagram Collection - Wiring Diagram ... Collection of jin you e70469 wiring diagram you'll be able to download totally free. Please download these jin you e70469 wiring diagram by using the download button, or right select selected image, then use Save Image menu. Wiring diagrams help technicians to view the way the controls are wired to the system. Jin You E70469 Wiring Diagram Gallery - Wiring Collection May 15, 2018 · Jin You E70469 Wiring Diagram Gallery. Assortment of jin you e70469 wiring diagram. A wiring diagram is a simplified traditional photographic representation of an electric circuit. It shows the elements of the circuit as simplified shapes, and the power and also signal connections in between the tools. A wiring diagram generally gives information about the family… CeilingFanParts.com - Switchco Products - Pull Chain Switches The easiest way to determine the correct switch is to call us with the switch in front of you, also, you will want to leave the wires in the switch and let us know how many wires your capacitor has. The drawings below depict the metal bands that are wrapped around the plastic cam inside of the switch. Jin You E70469 Wiring Diagram - autocardesign Jin You E70469 Wiring Diagram- wiring diagram is a simplified tolerable pictorial representation of an electrical circuit.It shows the components of the circuit as simplified shapes, and the knack and signal contacts in the company of the devices.

How can I fix my mistake with the ceiling fan? - DoItYourself ...

Jin You E70469 Wiring Diagram Jin You E70469 Wiring Diagram I have a 3 speed ceiling fan with a jin you e pull chain 4 wire switch (wire colors black, grey, purple, brown) Starting at the pull chain. The complete guide to help you decide what pull chain ceiling fan switch is Jin You 4-hole switch (Black wire in terminal "L" and terminal number L is in.

How to wire 3-speed fan switch

How Do You Wire A Zing Ear Fan Switch at Faq I hope it helps you. Jin you e70469 wiring diagram. Unscrew the switch nut attached to the old fan. Switch is labeled l, 1,. You can get a safety pin and open it up so you can use the sharp pointed side of the pin.

CeilingFanSwitch Zing Ear ZE-208s 3 Speed 4 Wire Pull Chain ...

jin e70469 replacement Questions & Answers (with Pictures) Chain on a JInyou E70469 3 speed fan switch broke. need to replace switch ... replacing the pull chain switch(e70469) and do not have a wiring diagram,The ...

Correct pull-switch wiring scheme for a 3-speed ceiling fan ...

Where can I purchase a Jin you e70469 ceiling fan switch. 1) Diagram the wiring configuration of the switch noting where things go---take pictures. 2) Take out the wires that connect to it. Use a paper clip to spread ...

Ceiling Fan Capacitor Solutions | Conscious Junkyard

I need a e70469 pull chain switch, an old ceiling fan ... the switch is a jin you e70469. Electrician: ... One of the biggest problems with ceiling fans is that the manufacturers don't provide an internal schematic wiring diagram. Thus there is no standard when re-wiring any internal ceiling fan wires.

Westinghouse Lighting 77075 3-Speed Fan Switch

Dayton fan pull switch wiring diagram I Have a Dayton 3 speed fan, the pull switch went bad. However when the old one was removed close attention was not given to the wiring. It is a two layer switch, with five wires coming out of the fan. The switch is a JIN YOU e70469, the Fan is a dayton 3c69oa. If anyone knows where I can find a wiring diagram to make sure I rewire the fan correctly, I would greatly appreciate it

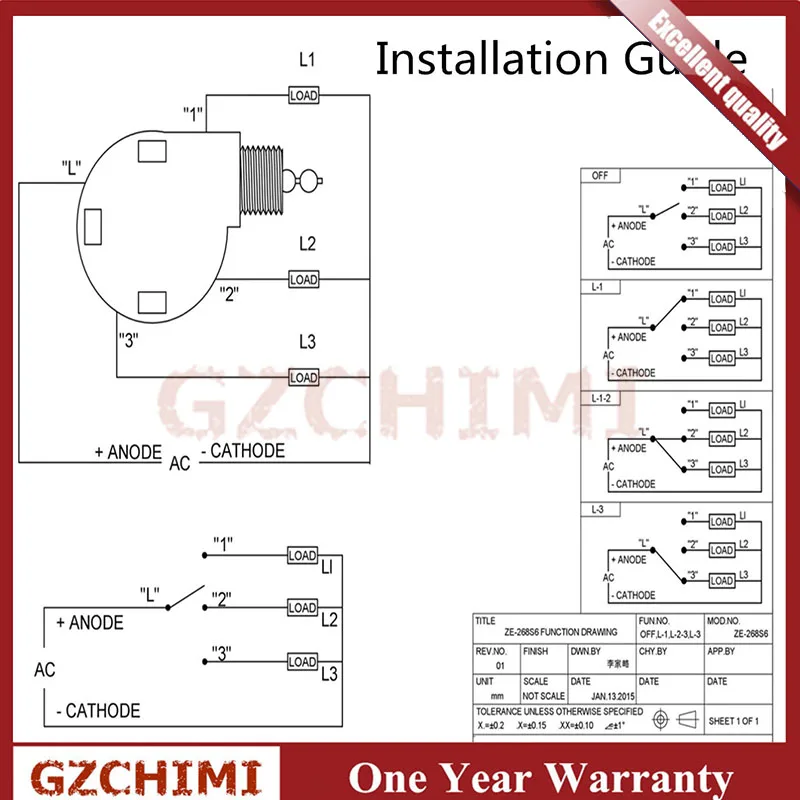

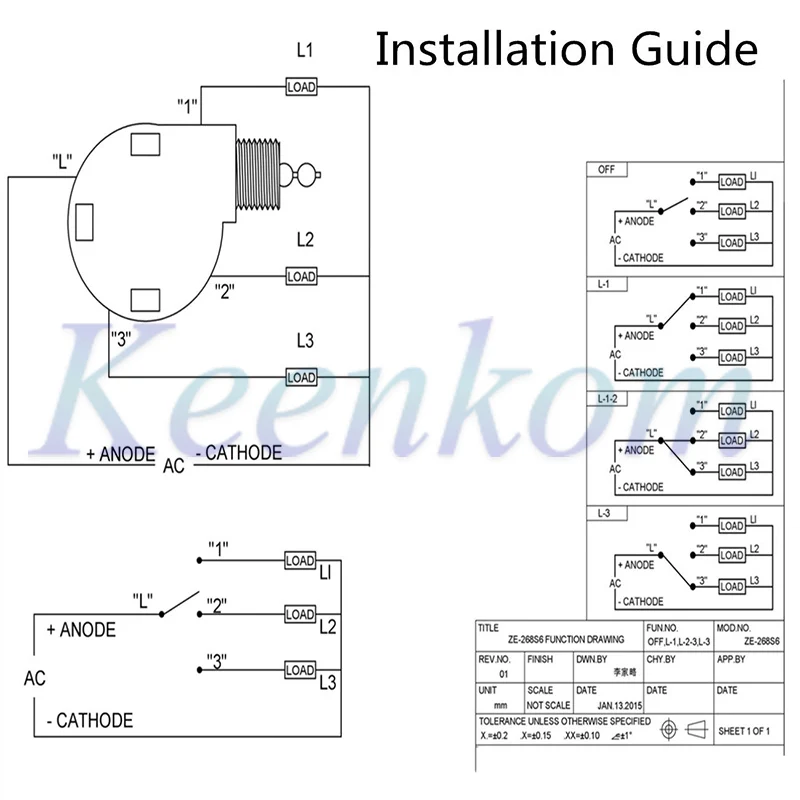

ZE-268S6 & ZE-208S6 Switch 3 Speed Pull Chain Control Fan ...

Santa e70469 ceiling fan wiring diagram - Fixya santa e70469 ceiling fan wiring diagram the pull switch has a gray wire leadng ... Chain on a JInyou E70469 3 speed fan switch broke. need to replace switch.

Zing Ear ZE-228s 2 Speed 3 Wire Ceiling Fan Pull Chain Switch

I need a Jin You E70469 4 wire 3-speed ceiling fan switch ... That sounds like it should work for you. That is the same layout on the switch. · Wow! My Jin You E70469 has FIVE wires. · my switch has 2 blk, 2 yellow, 1 orange ...

4 Wire Ceiling Fan Wiring Diagram | Ceiling fan wiring ...

Ceiling Fan Switch Compatibility Guide - CeilingFanSwitch.com Jin You 4-hole switch (Black wire in terminal "L" and terminal number L-3-1-2 is in counterclockwise order) Santa 4-hole switch (Black wire in terminal "L" and terminal number L-3-1-2 is in counterclockwise order) Well Tec 3 speed 4-hole (Black wire in terminal "L" and terminal number L-3-1-2 is in counterclockwise order)
