3 answersThe neutral and ground MUST NOT be bonded at a sub-panel. They should only be bonded at the main service panel. If you bond them anywhere other than the ... wiring ground in subpanel auto diagram database. Architectural wiring diagrams accomplishment the approximate locations and interconnections of receptacles, lighting, and unshakable electrical services in a building. Interconnecting wire routes may be shown approximately, where particular receptacles or fixtures must be on a common circuit.

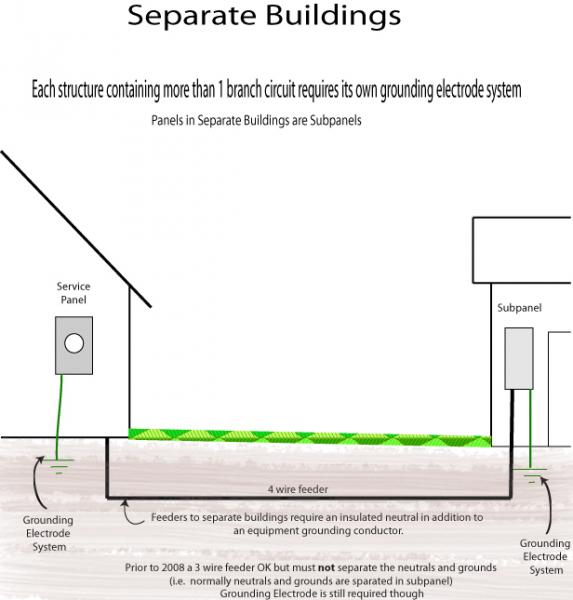

Grounded (neutral) and grounding bus must be separate at sub-panel (250.32(B)(1)). No need for a GFCI breaker in the main panel, unless your local code requires it. A grounding electrode system is required at the second structure (250.32(A)).

Grounding a subpanel diagram

23 Jul 2019 — When should the ground and neutral wires be separated at a subpanel? It depends. Joined Mar 12, 2006. ·. 682 Posts. #3 · Dec 31, 2007. If the detached building has more than one circuit (in your case a panel that will feed more than one circuit) you will need a ground rod. The safest installation is using a full size ground from the main building to the sub panel in the detached building. 16 Jul 2019 — When should the ground and neutral wires be separated at a subpanel? It depends. ... Main panel wiring diagram Subpanel wiring diagram.

Grounding a subpanel diagram. I have some questions about proper grounding and specs for a subpanel in a shed. Here’s an overview: Distance from the main panel (at the house) to the shed is about 110’. Using 10/3 wire. At the main service panel = a double-pole 20-amp breaker (two 20-amp breakers with the switches connected). Only using 20 b/c of the long run from panel to sub. At the shed: Subpanel for 4 circuits, but ... Subpanel Grounding: Answers to Common Questions. by Michael Casey and Barry Stone. There are few subjects in the field of home inspection that raise as many questions, debates, and uncertainties as subpanel grounding. This article will address many of those concerns and provide some clarity on this vital aspect of electrical safety. The points ... Subpanel Grounding: Answers to Common Questions by Michael Casey and Barry Stone There are few subjects in the field of home inspection that raise as many questions, debates, and uncertainties as subpanel grounding. This article will address many of those concerns and provide some clarity on this vital aspect of electrical safety. Grounding A Subpanel Diagram. Hello, So, I think I understand this correctly; however, I want some feedback. Please, see the attached pictures of the sub-panel. In this condo. Pull 4 conductors (2 ungrounded (hot), 1 grounded (neutral), 1 grounding) ( (B) (1)). Grounded (neutral) and grounding bus must be.

Second ground to pipe at subpanel is not needed. Remove ground wire from pipe at subpanel and add equipment ground wire between neutral/ground bar in first panel to ground bar in subpanel. Also typically 2 ground rods are needed linked together where your diagram shows one. CasualJoe voted this post useful. The only thing that needs to be changed at the sub-panel is the addition of an equipment ground bus bar and moving the bare or green wires from the neutral to the new ground bar. Adding a grounding bushing to the RMC at both ends and a green #12 (for 20 amperes) from the lug on the bushing to the neutral bus in the service panel and to the ... 16 Jul 2020 — Now it is good the panel is grounded, but the grounds should not have a connection to the neutral wires in this subpanel. Adding a “ground strap” or “ground screw” in your sub-panel will intermingle the normal neutral load currents with the EGC ground fault currents, and the EGC is only there to trip the circuit breakers and protect you in the event of a hot-to-chassis short circuit. The manufacturers supply you with a green grounding (bonding) screw or ...

16 Jul 2019 — When should the ground and neutral wires be separated at a subpanel? It depends. ... Main panel wiring diagram Subpanel wiring diagram. Joined Mar 12, 2006. ·. 682 Posts. #3 · Dec 31, 2007. If the detached building has more than one circuit (in your case a panel that will feed more than one circuit) you will need a ground rod. The safest installation is using a full size ground from the main building to the sub panel in the detached building. 23 Jul 2019 — When should the ground and neutral wires be separated at a subpanel? It depends.
