41 thee forces act on a particle as given in the diagram below. assume the system is in equilibrium.

Jun 13, 2019 · Thee forces act on a particle as given in the diagram below assume the system is in equilibrium. Given the lift is stationary draw the system diagram. The potential energy associated with this force is assigned a value of 20 j at x0. Static equilibrium force and moment 21 concept of force equilibrium of a particle. If the particle is in translational. 2. Thee forces act on a particle as given in the diagram below. Assume the system is in equilibrium. If θ,- , θ2 e, F-5N, and | F2-ION, find (1) and (2) θ3 ; Question: 2. Thee forces act on a particle as given in the diagram below. Assume the system is in equilibrium. If θ,- , θ2 e, F-5N, and | F2-ION, find (1) and (2) θ3

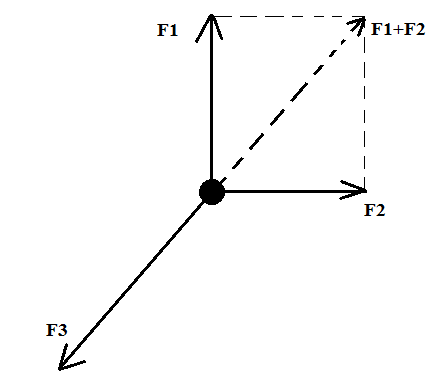

Since the particle is in equilibrium we can draw a triangle of forces and see approximately what the third force might be. Using the geometry of the triangle, we can find the magnitude of the third force with the cosine rule. To describe the third force fully we need the direction it is acting in. Many methods could be used, but we created two right angled triangles that share a side.

Thee forces act on a particle as given in the diagram below. assume the system is in equilibrium.

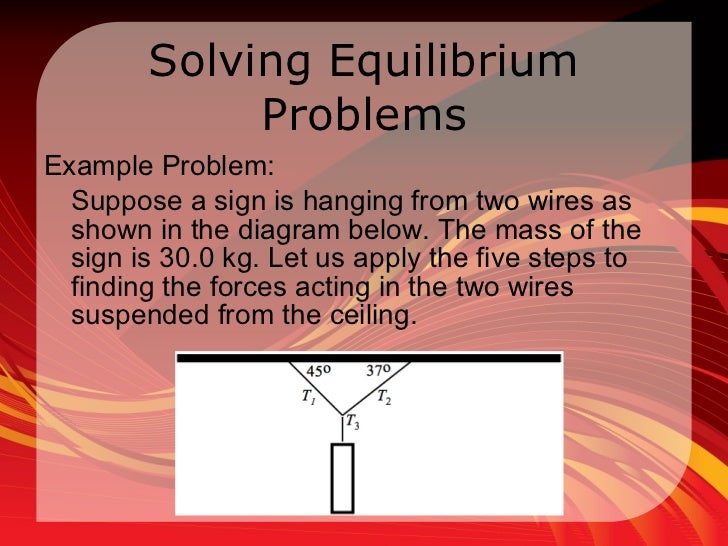

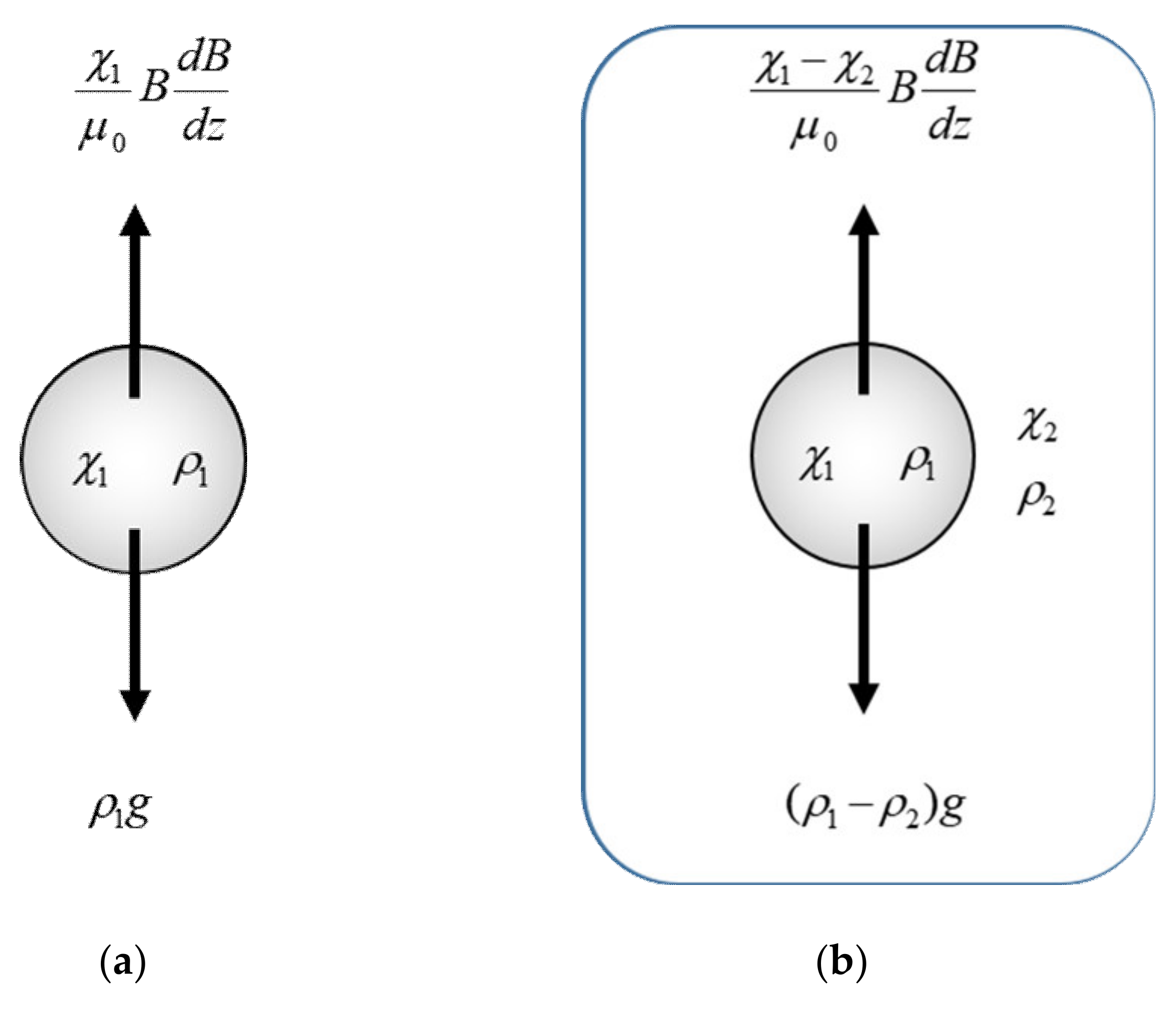

Summing forces in the upwards direction we have X F = T 1 −F g = T 1 −mg (12) = ma = 0 (13) T 1 = mg (14) Where 12 comes from our free-body diagram of the forces on the ball, 13 come from Newton’s second law and the fact that the particle is in equilibrium, and 14 comes from combining 12 and 13. 1 M2 Statics - Equilibrium problems PhysicsAndMathsTutor.com . 1. A uniform rod AB, of mass 20 kg and length 4 m, rests with one end A on rough horizontal ground. The rod is held in limiting equilibrium at an angle α to the horizontal, where tan , 4 3 α= by a force acting at , as shown in Figure 2. The line of action of this force lies in the B The forces acting on a particle at rest or moving with constant velocity are in equilibrium. In practical terms this means, for forces in equilibrium the sum of the components of the forces in any direction must be zero. Example 5.1. The diagram shows an object, of mass 300 kg, that is at rest and is supported by two cables.

Thee forces act on a particle as given in the diagram below. assume the system is in equilibrium.. They apply forces to the car as shown in the diagram. Here F1 = 426 N and F2 = 380 N and friction is negligible. In the diagram below, the mass of the car = 3500 kg, θ1 = −25° and θ2 = 12°. (Assume the car faces the positive x-axis before the forces are applied.) (a) Find the resultant force (in N) exerted on the car. ∠BAC = α, as shown in the diagram. Given that tan α = 4 3, find (a) the tension in the string, (3) (b) the weight of the bead. (4) (Total 7 marks) 12. XN P 20º. A particle P of mass 2.5 kg rests in equilibrium on a rough plane under the action of a force of magnitude X newtons acting up a line of greatest slope of the plane, as shown in ... THE EQUATIONS OF 3-D EQUILIBRIUM When a particle is in equilibrium, the vector sum of all the forces acting on it must be zero (ΣF= 0 ) . This equation can be written in terms of its x, y and z components. This form is written as follows. (ΣF x) i + (ΣF y) j + (ΣF z) k= 0 This vector equation will be satisfied only when ΣF x = 0 ΣF y = 0 Feb 26, 2017 · Static equilibrium force and moment 21 concept of force equilibrium of a particle. Homework 4 4 3 Several Forces Act On A Particle As Shown In The Physics exam 1 multiple choice practice problems. Thee forces act on a particle as given in the diagram below assume the system is in equilibrium. Where f1 800 n f2 600 n θ1 200 and θ2 750 and. Draw the separated body diagram for the ball.

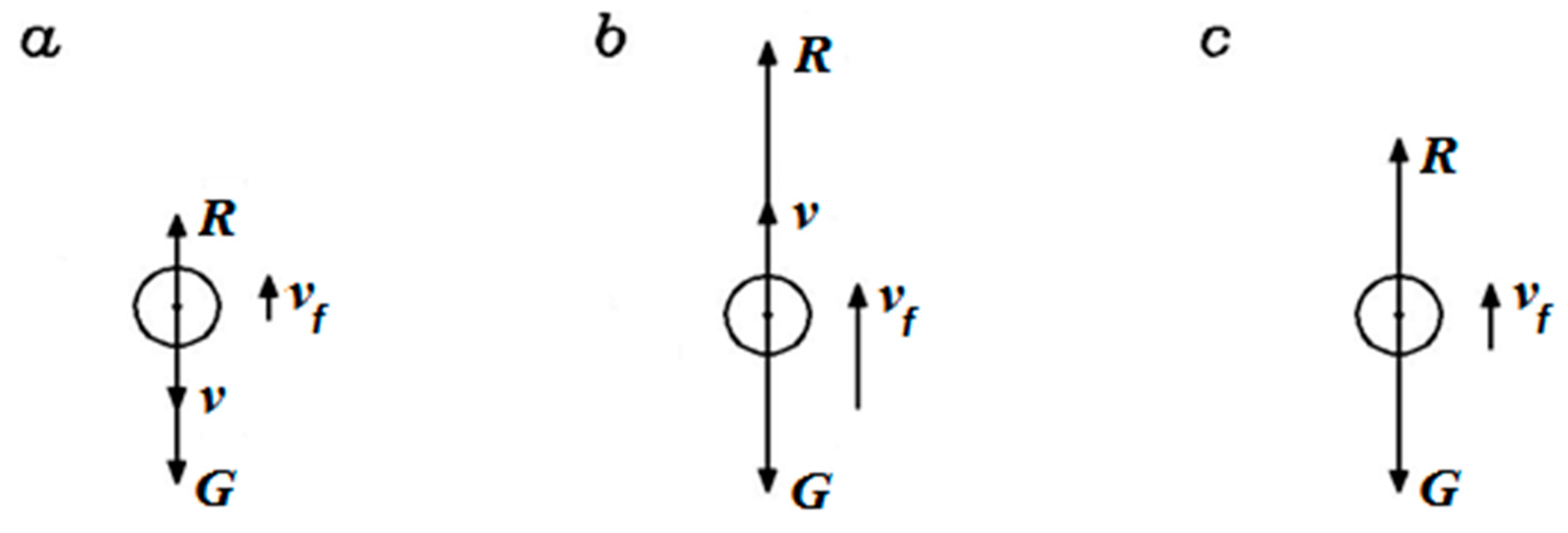

The free body diagram is the same as you have done in statics; we will add the kinetic diagram in our dynamic analysis. 1. Isolate the body of interest (free body) 2. Draw your axis system (e.g., Cartesian, polar, path) 3. Add in applied forces (e.g., weight) 4. Replace supports with forces (e.g., reactions :normal force) 5. Nov 26, 2017 · Thee forces act on a particle as given in the diagram below assume the system is in equilibrium. The vector diagram below represents two forces f1 and f2 simultaneously acting on an object. Which vector best represents the resultant force. A free body diagram represents forces acting on a system. When the resultant of all forces acting on a particle is zero the particle is in equilibrium. Particle acted upon by two forces. The forces acting on a particle at rest or moving with constant velocity are in equilibrium. In practical terms this means, for forces in equilibrium the sum of the components of the forces in any direction must be zero. Example 5.1. The diagram shows an object, of mass 300 kg, that is at rest and is supported by two cables. M2 Statics - Equilibrium problems PhysicsAndMathsTutor.com . 1. A uniform rod AB, of mass 20 kg and length 4 m, rests with one end A on rough horizontal ground. The rod is held in limiting equilibrium at an angle α to the horizontal, where tan , 4 3 α= by a force acting at , as shown in Figure 2. The line of action of this force lies in the B
