d2 Tanabe-Sugano Diagram . d5 Tanabe-Sugano Diagram d4 Tanabe-Sugano Diagram . d6 Tanabe-Sugano Diagram . d8 Tanabe-Sugano Diagram . Author: Jircitano, Kellie Created Date: 3/14/2011 4:00:24 PM ... Certain Tanabe-Sugano diagrams (d4, d5, d6, and d7) also have a vertical line drawn at a specific Dq/B value, which corresponds with a discontinuity in the slopes of the excited states' energy levels. This pucker in the lines occurs when the spin pairing energy, P, is equal to the ligand field splitting energy, Dq.

The Orgel and Tanabe-Sugano diagram for d2-configuration can be used to estimate the value of crystal field splitting energy for these transition metal complexes. (a) (b) Figure 38. The (a) Orgel and (b) Tanabe-Sugano diagrams for d2complexes in the octahedral crystal field. Consider the example of [V(H2O)6]3+. 1.

D2 tanabe sugano diagram

For the octahedral d 2 case, the ground term is 3 T 1g which is plotted along the X-axis. The first spin-allowed transition is to the 3 T 2g level which is the red line. The other spin-allowed transitions are to the 3 A 2g level (drawn in green) and to 3 T 1g (P) level (drawn in blue) the order depending on the size of Δ. T sdiagram. 1. d2 Tanabe-Sugano Diagram 1A 1E 1g g 80 3A 2g 70 60 1T 1g 1T 1S 2g 3T 50 1g E/B 40 3T 2g 1A 1g 30 1G 20 1E 3P g 1D 1T 2g 10 3F 3T 0 1g 0 10 20 30 40 ∆o/B. 2. d3 Tanabe-Sugano Diagram 4T 1g A2g 2 80 70 2A 1g 4T 60 1g 50 4T 2g E/B 40 2F 2T 2g 30 2T 1g 20 2E 2G g 4P 10 4F 4A 0 2g 0 10 20 30 40 50 ∆o/B. Full matrices in the form of spreadsheets are provided in this paper for octahedral and tetrahedral symmetry for all cases from d2 through d8. Diagonalization of such matrices with MACSYMA is illustrated. Construction of full Tanabe-Sugano diagrams is possible for students for any choice of input parameters. Download to read the full article text.

D2 tanabe sugano diagram. Orgel and Tanabe-Sugano Diagrams for Transition Metal Complexes (d1 - d9 States) It is a well-known fact that electronic transitions are always accompanied by vibrational as well as rotational changes which results in a considerable broadening of the bands in the UV-visible spectra of transition metal complexes too. About Press Copyright Contact us Creators Advertise Developers Terms Privacy Policy & Safety How YouTube works Test new features Press Copyright Contact us Creators ... Limitations of MO Diagrams The problem: orbital energy diagrams ignore inter-electron repulsion, i.e., several states comprise the (t 2g)1(e g) 1 configuration, 10:26 - Electronic State Diagram 21:25 - d2 Tanabe Sugano Diagram 30:25 - d7 Tanabe Sugano Diagram 44:29 - Sample Problem, [Co(NH3)6]2+ 50:59 - Jahn-Teller Effect: Lecture 29 Play Video: Inorganic Chemistry: Jahn-Teller Effect and Electron Counting Instructor: Alan F. Heyduk. Recorded on December 12, 2014. Index of Topics:

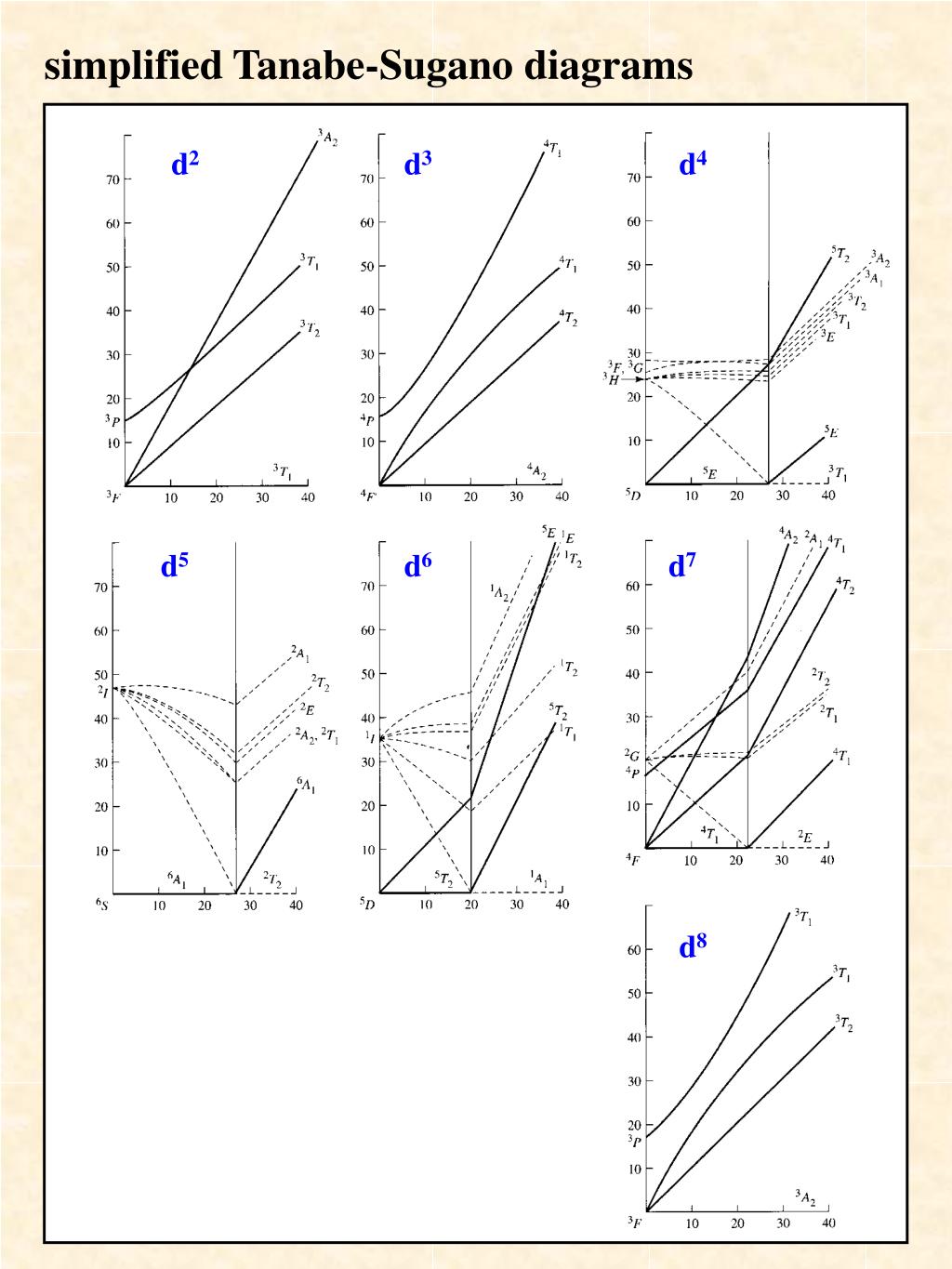

Lecture 4 May 11: Tanabe Sugano Diagrams A Tanabe-Sugano (TS) diagram plots the energy dependence of the various ligand field states (or terms) with field strength. The strength of the ligand field is defined by Dq, which is related to the octahedral crystal field splitting by 10Dq = ∆o. The energy of the state is given by E. Tanabe-Sugano diagrams via spreadsheets. A set of spreadsheets has been developed to aid in spectral interpretation. for d2 (oct) for d3 (oct) for d4 (oct) for d5 (oct) for d6 (oct) for d7 (oct) for d8 (oct) Alternatively a single ZIP file containing all of the above spreadsheets can be downloaded. Notes on d7 Tanabe-Sugano Diagram!The d 7 diagram, like all such diagrams for configurations that may be either high spin or low spin, has a perpendicular line near the middle marking the change in spin state. "To the left of the line (low field strength, high spin), the ground state is 4T 1, emerging from the free-ion 4F term. Tanabe-Sugano diagrams are used in coordination chemistry to predict electromagnetic absorptions of metal coordination compounds of tetrahedral and octahedral complexes. The analysis derived from the diagrams can also be compared to experimental spectroscopic data.

6 In Previous Lecture: T-S diagrams are used to predict absorptions bands in the UV, visible spectra of coordination compounds.The results from a Tanabe-Sugano diagram analysis of a metal complex can also be compared to experimental spectroscopic data. They are qualitatively useful and can be used to determine, a. Ligand Field Splitting parameters, 10 Dq or Δ o. d2 Tanabe-Sugano Diagram. Captions. Summary . Description: English: The Tanabe-Sugano diagram for a d 2 transition metal ion. The energies are calculated using a Racah C = 4.5 B, and only selected states are depicted. Transitions from the triplet ground state to singlet excited states (dotted) are spin-forbidden. Tanabe-Sugano diagrams can also be used to predict the size of the ligand field necessary to cause high-spin to low-spin transitions. In a Tanabe-Sugano diagram, the ground state is used as a constant reference, in contrast to Orgel diagrams. The energy of the ground state is taken to be zero for all field strengths, and the energies of all ... Certain Tanabe–Sugano diagrams (d 4, d 5, d 6, and d 7) also have a vertical line drawn at a specific Dq/B value, which is accompanied by a discontinuity in the slopes of the excited states' energy levels.This pucker in the lines occurs when the identity of the ground state changes, shown in the diagram below. The left depicts the relative energies of the d 7 ion states as functions of ...

Tanabe-Sugano diagram for octahedrally coordinated V 3+ ion with | Download Scientific Diagram

d2 Tanabe-Sugano Diagram 1A 1E 1g g 80 3A 2g 70 60 1T 1g 1T 1S 2g 3T 50 1g E/B 40 3T 2g 1A 1g 30 1G 20 1E 3P g 1D 1T 2g 10 3F 3T 0 1g ∆o/B 0 10 20 30 40 d3 Tanabe-Sugano Diagram 4T 2 1g A2g 80 70 2A 1g 4T 60 1g 50 4T 2g E/B 40 2F 2T 2g 30 2T 1g 20 2E 2G g 4P 10 4F 4A 0 2g ∆o/B 0 10 20 30 40 50 d4 Tanabe-Sugano Diagram 3A 1 2g A2

Calculations using Tanabe-Sugano diagrams

Title: Microsoft PowerPoint - handout6b Author: Alan Jircitano Created Date: 11/22/2004 11:06:49 PM

Tanabe-Sugano Diagrams - Chemistry LibreTexts

d7Tanabe-Sugano Diagram E / B ∆o/ B 4F 2G 2Eg 2T1g 2A1g 2T2g 4P 4A 2g 4T 1g ( 4P) 4T 2g 4T 1g ( 4F) Complexes with d4-d7 electron counts are special •at small values of ∆o/B the diagram looks similar to the d2diagram •at larger values of ∆o/B, there is a break in the diagram leading to a

Solved: 9. Shown Below Is The Simplified Tanabe-Sugano Dia... | Chegg.com

Feb 26, 2019 · Tanabe-Sugano diagram for d2 octahedral complexes 2/26/2019 12 13. Advantages over Orgel diagrams • Tanabe–Sugano diagrams can be used for both high spin and low spin complexes, unlike Orgel diagrams which apply only to high spin complexes.

D3 Tanabe Sugano Diagram

Apr 02, 2019 · Tanabe-Sugano diagram for d2 octahedral complexes On moving up the line from the ground term to where lines from the other terms cross it, we are able to identify both the spin-forbidden and spin-allowed transition and hence the total number of transitions that are possible in the electronic spectrum.

shallow focus photo of book page

There is no low-spin or high-spin designation for d2, d3, or d8 All of prepared Ni(II) complexes are d8 and have 3 d-d transitions Summary Definition of Tanabe-Sugano diagrams How to determine the d-d transition for metal ion Tanabe-Sugano diagrams for HS & LS in Oh geometry References Inorganic chemistry, Shriver and Atkins, fifth edition ...

eXe

d 2 Tanabe-Sugano Diagram. Duda Baif. Download PDF. Download Full PDF Package. This paper. A short summary of this paper. 29 Full PDFs related to this paper. Read Paper. d 2 Tanabe-Sugano Diagram.

white pasta on white paper

Tanabe Sugano Diagram: Sugano. Read or Downloads . Tanabe Sugano Diagram suganorm suganorm forte suganorm erfahrungen suganorm pzn suganorm apotheke suganorm preis suganorm amazon suganorm kaufen in deutschland suganorm diabetes suganorm inhaltsstoffe suganorm 20 kapseln x 2 suganorm online apotheke tanabe sugano diagram pdf tanabe sugano diagramm tanabe sugano diagramm d5 tanabe sugano ...

PPT - Electronic (UV-visible) Spectroscopy PowerPoint Presentation - ID:425630

Tanabe Sugano Diagram d2 #drbeenakiscience #csir #gate #net

D3 Tanabe Sugano Diagram

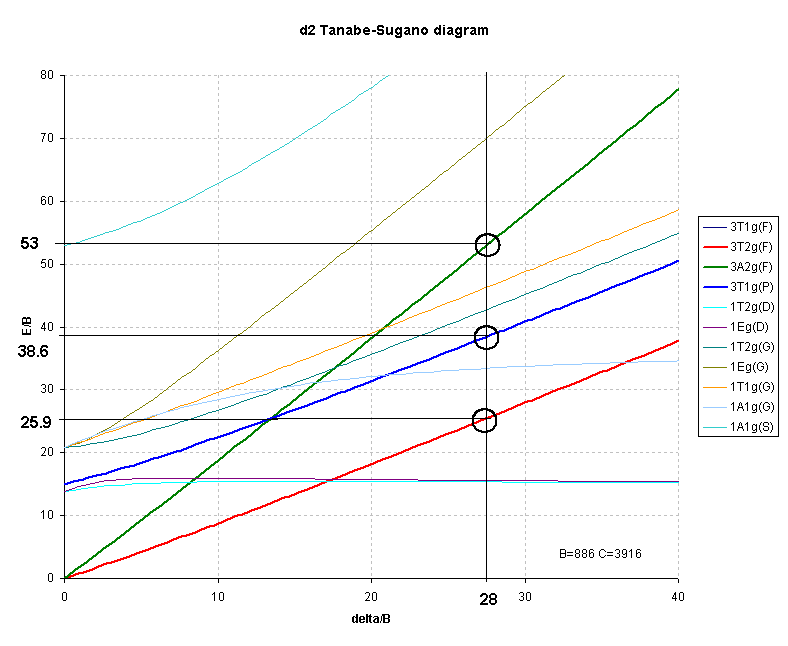

d2Tanabe-Sugano Diagram E / B ∆o/ B 3F 3P 3T 1g (3P) 3A 1g 3T 2g (3F) 3T 1g ~15B ~∆o ~∆o E1 E2 E3 E is the energy of the excited state relative to the ground state B is the Racah parameter for e–-e–repulsion The example on page 427 of your text shows how to use this chart to fit the experimental data (E1, E2, and E3) for [V(OH2)6]3+to ...
